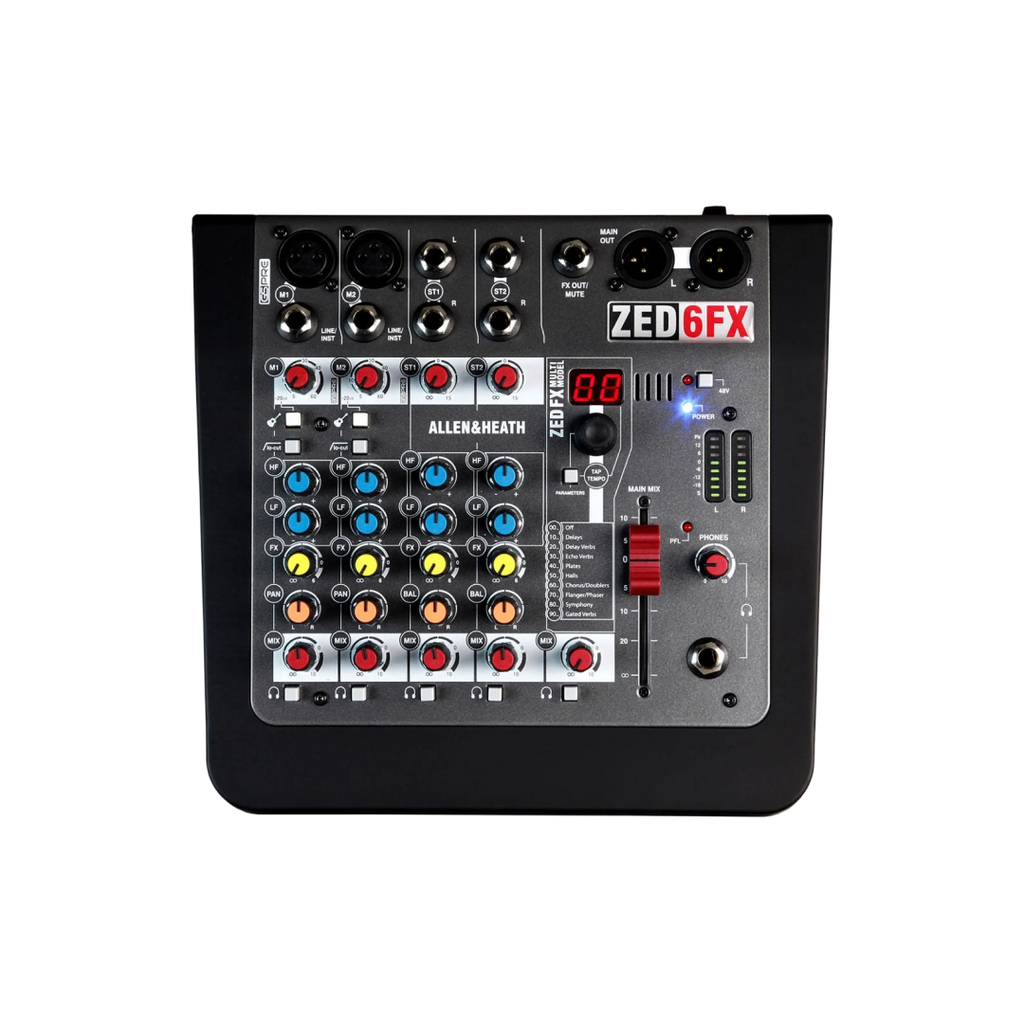

Allen & Heath ZED-6FX is a compact 6-input analogue mixer designed for musicians, singer-songwriters, small bands, venues, rehearsal spaces, presenters and content creators. Featuring two mono channels with studio-quality GSPre microphone preamps, two stereo line-input channels and a built-in ZED FX multi-model processor, it provides clear sound and flexible control in a portable format. Switchable high-impedance instrument inputs, global +48 V phantom power, two-band EQ, a 100 Hz high-pass filter and PFL monitoring make the ZED-6FX an ideal solution for live performances, rehearsals, presentations and compact audio setups.

Key features

• Compact 6-input analogue mixer
• 2 mono mic/line input channels with GSPre microphone preamps
• 2 stereo line-input channels
• 2 switchable high-impedance instrument inputs
• Built-in ZED FX multi-model effects processor
• Independent effects send control on every input channel
• Tap Tempo control for compatible delay effects
• Global +48 V phantom power for condenser microphones
• 100 Hz high-pass filter on mono channels
• Two-band EQ on mono and stereo channels
• Channel PFL monitoring with dedicated status indicator
• 8-segment stereo LED level meters
• Balanced XLR main outputs
• Dedicated headphone output with independent level control
• Internal universal power supply

Overview

Included Content

• Allen & Heath ZED-6FX analogue mixer
• IEC C5 mains power cable with region-appropriate plug

Creative Tools

• Connect two microphones through the high-quality GSPre microphone preamps, providing clean and low-noise amplification for vocals, acoustic instruments, presentations and spoken-word applications.
• Plug guitars, basses and other pickup-equipped instruments directly into the two switchable high-impedance inputs without requiring separate DI boxes.
• Connect keyboards, drum machines, media players and other stereo equipment through the two stereo line-input channels, allowing several different sound sources to be combined in one compact system.
• Add reverb, delay and modulation effects using the integrated ZED FX multi-model processor, with independent effects-send control available on every input channel.
• Synchronise compatible delay effects with a performance using the dedicated Tap Tempo button, and adjust editable effect parameters directly from the mixer.
• Power condenser microphones and compatible active DI boxes using global +48 V phantom power across the two XLR microphone inputs.
• Reduce handling noise, stage rumble, vocal popping and proximity effect using the 100 Hz high-pass filter provided on each mono input channel.
• Shape the tonal balance of microphones, instruments and stereo sources using the two-band EQ, with controls centred at 80 Hz for low frequencies and 12 kHz for high frequencies.
• Check individual channels before adding them to the main mix using PFL monitoring through the headphone output and the stereo LED level meters.
• Connect the balanced XLR main outputs directly to powered loudspeakers, a PA system or recording equipment for live performances, rehearsals and small production setups.
• Use the FX output to feed an external effects processor or powered monitor, or connect a compatible latching footswitch to mute the internal effects during a performance.

Ideal For

• Musicians
• Singer-songwriters
• Duos and small bands
• Live performers
• Rehearsal rooms
• Small venues
• Schools and presentation spaces
• Podcasters and content creators
• Compact home audio setups
• Anyone seeking a portable analogue mixer with professional preamps and built-in effects
